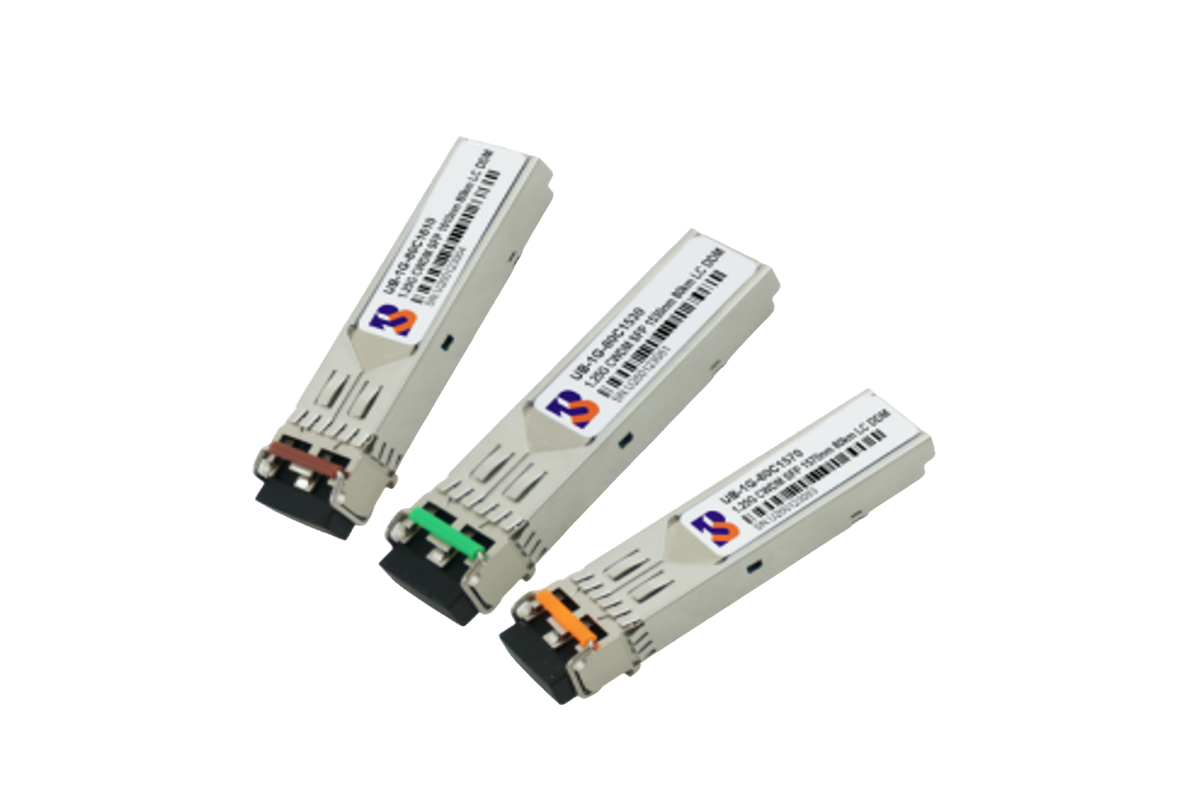

Features · Hot-pluggable SFP package Dual LC Connector · Wide distance Supported from 40km to 120km · Built-in Digital Diagnostic Monitor functions optional · Metal Enclosure for Lower EMI · Comply with SFP MSA / SDH/SONET · Comply with IEEE Std 802.3 · 18-Wavelength CWDM 1270nm to 1610nm available · Operation Temperature Range 0~70°C or -40~85°C optional DWDM 100GHz ITU Grid C Band Available · Single +3.3V Power Supply · Low Power Dissipation · RoHS-6 Compliant
|
P/N |
Data Rate |
Reach |
Tx |
Rx |
Output Power |
Sensitivity |
|
155Mbps~2.5Gbps CWDM SFP |
||||||
|
UB-OC3-80Cxxxx |
155Mbps |
80KM |
CWDM DFB |
PIN |
-5~0dbm |
≦-34dbm |
|
UB-OC12-80Cxxxx |
622Mbps |
80KM |
CWDM DFB |
PIN |
0~5dbm |
≦-28dbm |
|
UB-1G-40Cxxxx |
1.25Gbps |
40KM |
CWDM DFB |
PIN |
-5~0dbm |
≦-24dbm |
|
UB-1G-80Cxxxx |
1.25Gbps |
80KM |
CWDM DFB |
PIN |
0~4dbm |
≦-24dbm |
|
UB-1G-120Cxxxx |
1.25Gbps |
120KM |
CWDM DFB |
APD |
0~4dbm |
≦-32dbm |
|
UB-2.5G-80Cxxxx |
2.5Gbps |
80KM |
CWDM DFB |
PIN |
-2~-3dbm |
≦-18dbm |
|
UB-2.5G-120Cxxxx |
2.5Gbps |
120KM |
CWDM DFB |
APD |
0~5dbm |
≦-28dbm |
|
155Mbps~2.5Gbps DWDM SFP |
||||||
|
UB-OC3-80Dxx |
155Mbps |
80KM |
DWDM DFB |
PIN |
-5~0dbm |
≦-34dbm |
|
UB-1G-80Dxx |
1.25Gbps |
80KM |
DWDM DFB |
PIN |
0~5dbm |
≦-25dbm |
|
UB-1G-120Dxx |
1.25Gbps |
120KM |
DWDM DFB |
APD |
0~5dbm |
≦-32dbm |
|
UB-1G-160Dxx |
1.25Gbps |
160KM |
DWDM DFB |
APD |
≥3dbm |
≦-34dbm |
|
UB-2.5G-40Dxx |
2.5Gbps |
40KM |
DWDM DFB |
PIN |
0~5dbm |
≦-18dbm |
|
UB-2.5G-80Dxx |
2.5Gbps |
80KM |
DWDM DFB |
APD |
0~5dbm |
≦-28dbm |
|
UB-1G-120Dxx |
2.5Gbps |
120KM |
DWDM DFB |
APD |
0~5dbm |
≦-31dbm |
