Products
Features *Hot-pluggable QSFP28 form factor, compliant with QSFP28 MSA *4 channels full-duplex transceiver modules *Up to 28Gb/s per channel,112Gb/s aggregate bit rate *Support InfiniBand EDR *Single 3.3V power supply *4×25Gb/s VCSEL/DFB/EML transmitter *4×25G electrical interface *Built in full digital diagnostics *12C management interface *Power dissipation<5W *Temperature range 0℃ to 70° ℃ *Maximum link length of 80km on SMF/100m on MMF *RoHS-6 Compliant
|
P/N |
Data Rate |
Reach |
Connector |
Tx |
Rx |
|

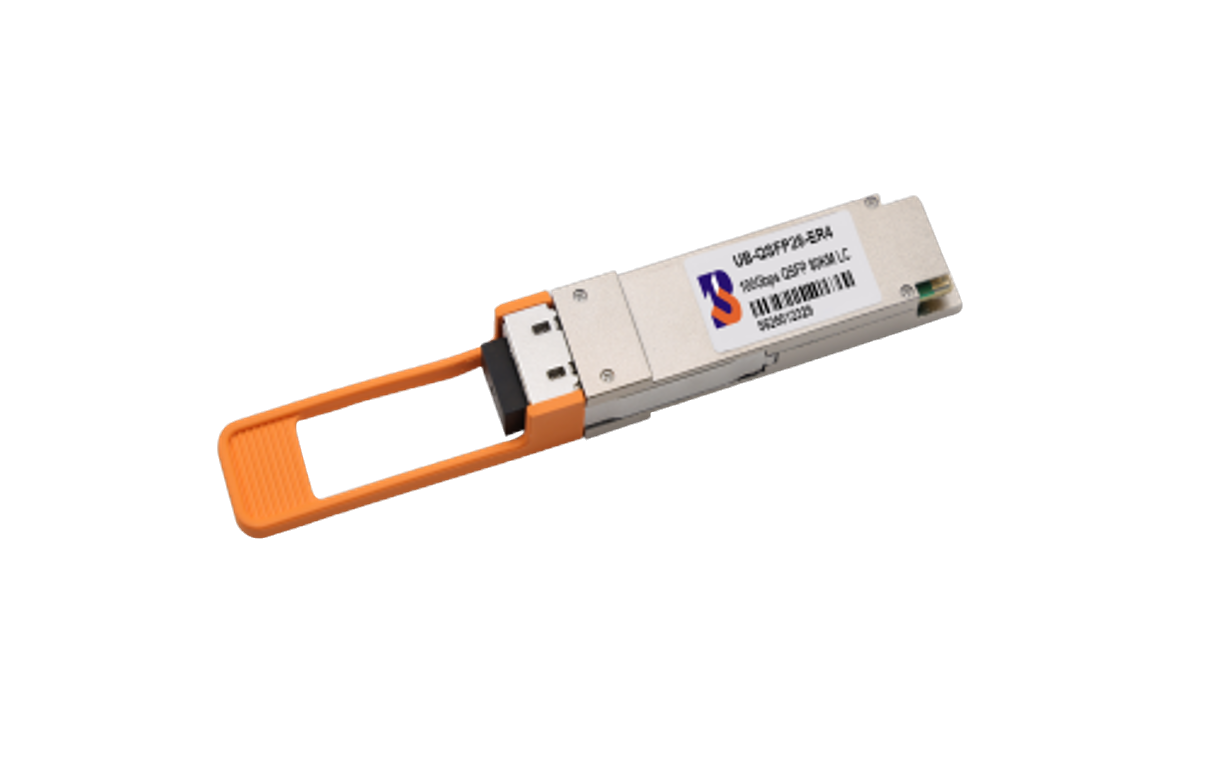

UB-QSFP28-SR4 |
40G/100Gbps |
100M |
MMF/MPO-12 |
850nm VCSEL |
PIN |
|
UB-QSFP28-SRBD |
100Gbps |
100M |
MMF/LC |
850m/910nm |
PIN |
|
UB-QSFP28-SWDM4 |
100Gbps |
100M |
MMF/ LC |
850/880/910/940nm |
PIN |
|
UB-QSFP28-PSM4 |
100Gbps |
2KM |
MPO-12 |
1310nm DFB |
PIN |
|
UB-QSFP28-CWDM4 |
100Gbps |
2KM |
SMF/ LC |
CWDM4 |
PIN |
|
UB-QSFP28-LR4 |
100Gbps |
10KM |
Dual LC |
1294~1310nm LWDM DML |
PIN |
|
UB-QSFP28-30 |
100Gbps |
30KM |
Dual LC |
1294~1310nm LWDM DML |
PIN |
|
UB-QSFP28-ER4 |
100Gbps |
40KM |
Dual LC |
1294~1310nm LWDM DML |
APD |
|
UB-QSFP28-60 |
100Gbps |
60KM |
Dual LC |
1294~1310nm LWDM DML |
APD+SOA |
|
UB-QSFP28-ZR4 |
100Gbps |
80KM |
Dual LC |
1294~1310nm LWDM EML |
APD+SOA |
|
UB-QSFP28-100 |
100Gbps |
100KM |
Dual LC |
1294~1310nm LWDM EML |
APD+SOA |
|
UB-QSFP28-10A/B |
100Gbps |
10KM |
Simplex LC |
1270/1330nm |
|
|
UB-QSFP28-20A/B |
100Gbps |
20KM |
Simplex LC |
1290/1310nm |
|
|
UB-QSFP28-30A/B |
100Gbps |
30KM |
Simplex LC |
1304/1309nm |
|
|
UB-QSFP28-40A/B |
100Gbps |
40KM |
Simplex LC |
1304/1309nm |
|
|
UB-QSFP28-80A/B |
100Gbps |
80KM |
Simplex LC |
1280/1304nm |
|
