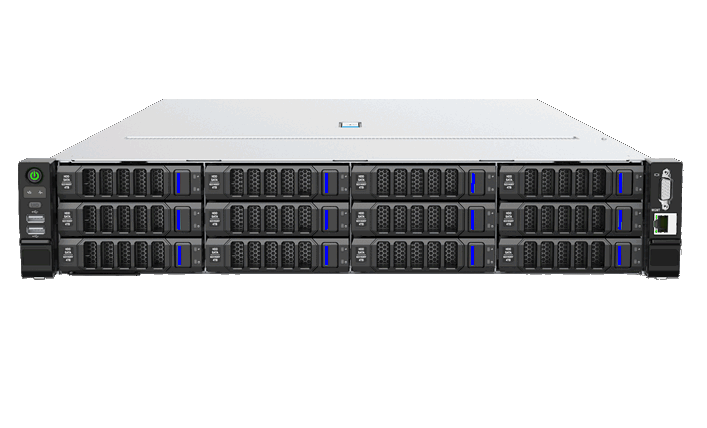

The R5220 V6 server supports up to two CPUs in 2U and features 8-channel 5600MT/s DDR5 memory technology, delivering up to 50% higher bandwidth for users. With support for 12 PCIe slots and up to 29 drive bays, it enables flexible expansion capabilities. Designed with 96% power supply efficiency and a standard operating temperature range of 0°C to 45°C, the R5220 Gen6 provides users with greater energy efficiency and return on investment.
| Model | R5220 V6 |
| Processor | Supports up to 2 Intel® Xeon® 4th or 5th Generation Scalable processors ; Up to 64 cores per processor, max TDP 350W |
| Memory | Supports up to 32 DDR5 memory slots, speeds up to 5600MT/s, supports RDIMM, capacity up to 8TB |
| Storage Controller | Optional high-performance RAID controller, supports RAID 0/1/10/5/6/50/60 |
| Storage Expansion | Supports up to 29 drives: |
| Supports up to 12 x 3.5-inch drives (12 front) | |
| Supports up to 24 x 2.5-inch drives (24 front) | |
| Supports up to 24 NVMe U.2 drives (24 front) | |
| Supports 2 x 2280 SATA or 1 x NVMe M.2 | |
| PCIe Expansion | Up to 12 PCIe expansion slots: |
| Supports up to 10 standard PCIe expansion slots (10 rear) | |
| Supports 2 OCP 3.0 slots | |
| GPU Support | Supports up to 4 double-width GPU cards (max 450W per card) |
| Management Software | Integrated BMC management chip AST2600, supports IPMI 2.0, Redfish, SOL, KVM, virtual media, etc. |
| Network | 1 x dedicated Gbps management port on-board |
| Supports 2 OCP 3.0 network cards | |
| Optional network adapters based on standard PCIe slots | |
| I/O Interfaces | Standard: 1 x RJ45 management port, 1 x rear VGA port, 4 x USB ports (2 front, 2 rear) |
| Optional expansion card supports: 2 x rear USB ports, 1 x USB Type-C management port, 1 x RJ45 management port | |
| Left ear: 2 x USB 2.0 ports, optional 2 x USB 3.0 ports | |
| Right ear: Optional intelligent ear supports 1 x VGA, 1 x management port, or 1 x Type-C management port | |
| Security | Supports chassis intrusion detection; Supports Intel PFR 3.0 and SGX 2.0 security technologies; Supports TCM/TPM security module |
| Power Supply | Optional 800W / 1300W / 1600W / 2000W / 2600W / 2700W / 3200W CRPS standard power supply, supports 1+1 redundancy |
| Operating Temperature | 0°C to 45°C (Operating temperature support is subject to configuration impact; please refer to product technical documentation for details) |
| Form Factor / Chassis Dimensions |
2U 87mm (H) x 447.4mm (W) x 800mm (D) (without security bezel) |
