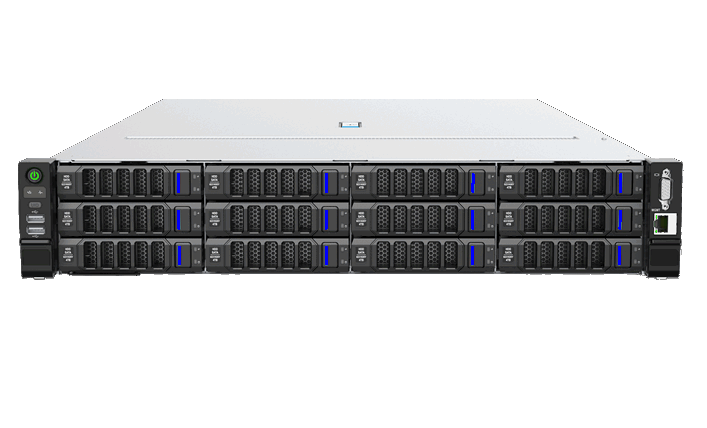

R5210 X7 general-purpose server is powered by one Intel® Xeon® 6 processor, paired with 12-channel DDR5 memory technology delivering up to 8800 MT/s. It supports up to 29 drive bays, a maximum of 4 full-height, full-length dual-width GPUs, or 10 PCIe 5.0 expansion slots, allowing flexible configuration adjustments to meet diverse workload requirements. With 96% power supply efficiency and a standard operating temperature range of 5°C to 40°C, the X7 delivers extreme computing performance while significantly reducing energy costs, making it the "all-purpose partner" for modern data centers—from cloud-native workloads to AI inference.
| Model | R5210 V7 |
| Processor | 1 * Intel® Xeon® 6 BHS-AP platform processor, max TDP 550W |
| Memory | Up to 12 x DDR5 DIMM slots |
| - Supports RDIMM, speed up to 6400 MT/s | |
| - Supports MRDIMM, speed up to 8800 MT/s | |
| Storage | Up to 29 x drives |
| - Supports 16 x 3.5" drives (12 front, 4 rear) | |
| - Supports up to 29 x 2.5" drives* (25 front, 4 rear) | |
| - Supports 20 x NVMe SSDs | |
| - Optional 2 x 2280/22110 SATA/NVMe M.2 SSDs | |
| Network | - 1 x dedicated Gbps management port (RJ45) on-board |
| - Supports 2 x OCP 3.0 NICs | |
| - Optional PCIe slot-based network adapters | |
| PCIe Expansion | Up to 10 x PCIe expansion slots |
| - Includes 8 x standard PCIe slots + 2 x OCP 3.0 slots | |
| GPU Support | Supports up to 4 x dual-width GPU cards*, max 450W per card |
| I/O Ports | Standard: 1 x RJ45 management port, 1 x rear VGA, 4 x USB (2 front, 2 rear) |
| - Left front bezel: 2 x USB 2.0, optional 2 x USB 3.0 | |
| - Right front bezel: optional smart bezel with 1 x VGA, 1 x management port, and 1 x Type-C management port | |
| Security | Supports chassis intrusion detection; supports TCM/TPM security module |
| Operating Temperature | 5°C ~ 40°C (actual thermal support depends on configuration; refer to product technical documentation for details) |
| Power Supply | 800W / 1300W / 1600W / 2000W / 2600W / 2700W / 3200W CRPS standard PSUs, supports 1+1 redundancy |
| Chassis Dimensions |
2U 87mm(H) × 447.4mm(W) × 800mm(D) (without front security bezel) |
